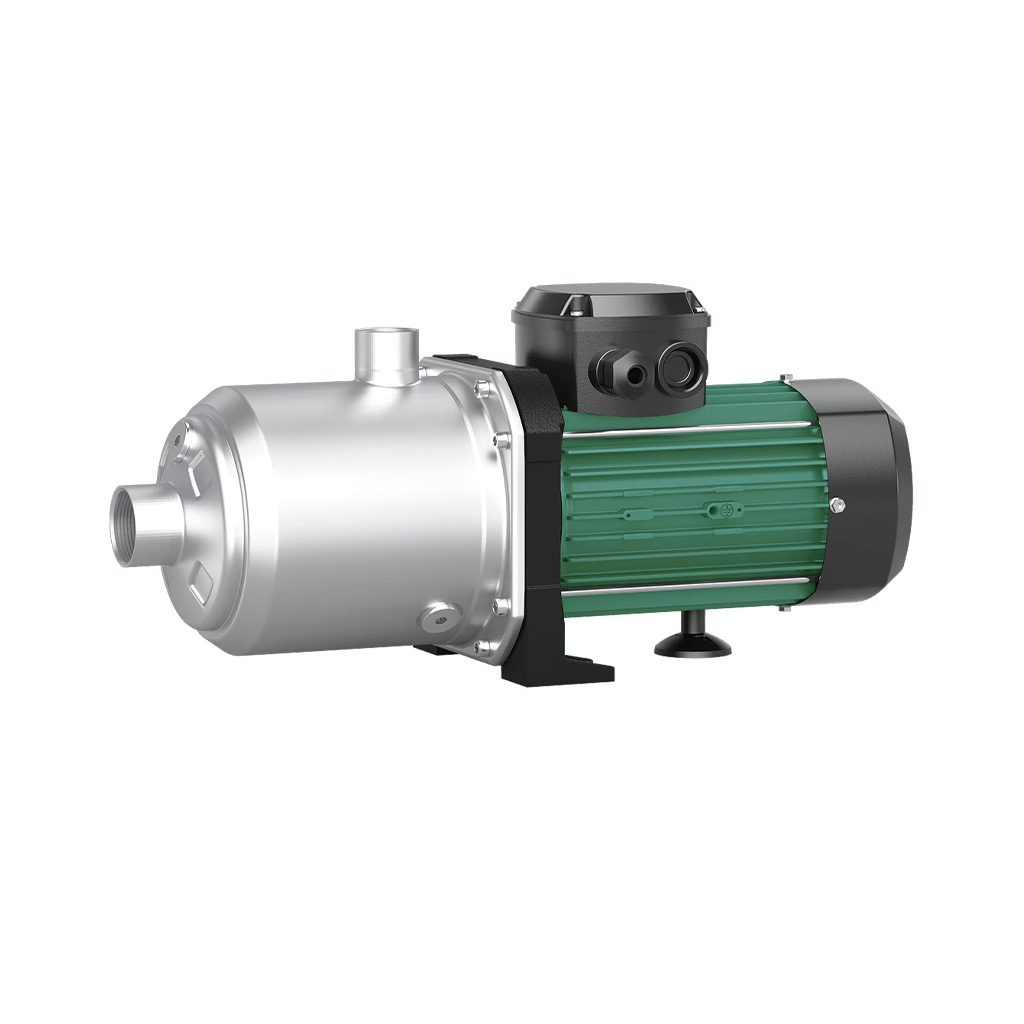

Wilo Medana CH1-L.605-1/E/A/10T 1.5 kW High-Pressure Multistage Water Pump
Original price was: AED4,450.00.AED4,200.00Current price is: AED4,200.00.
Shipping calculated at checkout.
The Wilo Medana CH1-L.605-1/E/A/10T is a 1.5 kW high-pressure horizontal multistage pump with stainless steel construction, designed for water supply, pressure boosting, irrigation, and commercial and industrial applications.
The Wilo Medana CH1-L.605-1/E/A/10T 1.5 kW High-Pressure Multistage Water Pump is a high-pressure horizontal multistage centrifugal pump designed for reliable water supply, pressure boosting, and circulation applications. Its stainless steel construction provides excellent durability and corrosion resistance for demanding water pumping environments.
The pump is equipped with a 1.5 kW single-phase motor operating at 1~230 V, 50 Hz, with a rated speed of 2,900 rpm and IE2 motor efficiency. The pump housing, impeller, and shaft are made from stainless steel, providing robust performance and long service life.
With a maximum operating pressure of 10 bar, fluid temperature capability from -20°C to 120°C, and maximum ambient temperature of 50°C, the Medana CH1-L.605-1/E/A/10T is suitable for a wide range of residential, commercial, and industrial water applications.
Key Features
- High-pressure horizontal multistage centrifugal pump
- 1.5 kW motor
- Single-phase 230 V, 50 Hz power supply
- IE2 motor efficiency
- Stainless steel pump housing
- Stainless steel impeller and shaft
- Compact and robust construction
- Maximum operating pressure of 10 bar
- IP55 motor protection
- Fluid temperature range from -20°C to 120°C
- Maximum ambient temperature of 50°C
- Reliable continuous operation
Applications
- Water supply
- Pressure boosting
- Commercial water systems
- Industrial circulation systems
- Process water systems
- Cooling water circulation
- Washing systems
- Irrigation
- General clean water pumping
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Wilo |
| Model | Medana CH1-L.605-1/E/A/10T |
| Article Number | 4260347 |
| Product Type | High-Pressure Horizontal Multistage Centrifugal Pump |
| Pump Design | Non-self-priming |
| Rated Power | 1.50 kW |
| Mains Connection | 1~230 V, 50 Hz |
| Rated Current | 8.30 A |
| Rated Speed | 2,900 rpm |
| Motor Efficiency Class | IE2 |
| Maximum Operating Pressure | 10 bar |
| Maximum Inlet Pressure | 6 bar |
| Fluid Temperature | -20°C to 120°C |
| Maximum Ambient Temperature | 50°C |
| Suction Connection | Rp 1¼, PN 10 |
| Discharge Connection | Rp 1, PN 10 |
| Pump Housing | Stainless steel 1.4301 |
| Impeller | Stainless steel 1.4301 |
| Shaft | Stainless steel 1.4301 |
| Shaft Seal | BQ 7EGG |
| Gasket Material | EPDM |
| Motor Protection | IP55 |
| Insulation Class | F |
| Net Weight | Approx. 18.4 kg |
Why Choose the Wilo Medana CH1-L.605-1/E/A/10T 1.5 kW High-Pressure Multistage Water Pump?
The Wilo Medana CH1-L.605-1/E/A/10T 1.5 kW High-Pressure Multistage Water Pump combines high-pressure performance with durable stainless steel construction and reliable single-phase operation. Its 10-bar maximum operating pressure and wide fluid temperature range make it a versatile solution for water supply, pressure boosting, circulation, irrigation, and other demanding pumping applications.
